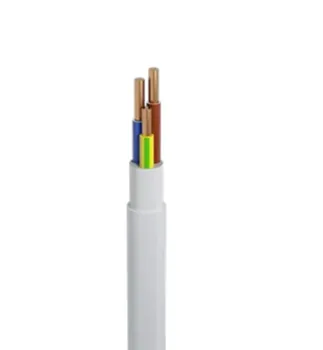

Kabel Listrik Jembo NYM 3x2.5 @100meter

Identification of cores
Twin Cores : Light-Blue, Black
Three Cores : System I
Green with yellow stripe ( G/Y ), Blue, Brown
System O
Brown, Black, Grey
Four Cores : System I
Green with yellow stripe ( G/Y ), Brown, Black, Grey
System O
Blue, Brown, Black, Grey
Five Cores : System I
Green with yellow stripe ( G/Y ) , Blue, Brown, Black, Grey
System O
Blue, Brown, Black, Grey, Black
Other colour are available on request
Construction:
1. Annealed Copper Conductor
2. Extruded PVC Insulated
3. Extruded PVC Outer Sheathed
Symbol : NYM
Size Ranged :
2 x 1.5 ... 35mm²
3 x 1.5 ... 35mm²
4 x 1.5 ... 35mm²
5 x 1.5 ... 35mm²
Applicable Standard :
Rated Voltage : 300/500 Volt
Specification :
SPLN 42-2 : 1992
SNI 04-6629.4 2006
IEC 60227-4 IEC 10
Other Specification are available on request
Application : Permanent installation
In conduit under plaster or exposed installation
In dry location
Harga per meter
